GOYOJO 500N Digital Force Gauge – High-Precision Push-Pull Meter for Tension & Compression Testing, 4 Measurement Units (N, kg, lb, oz) with Peak/Real-Time Modes for Quality Control & Industrial Testing.

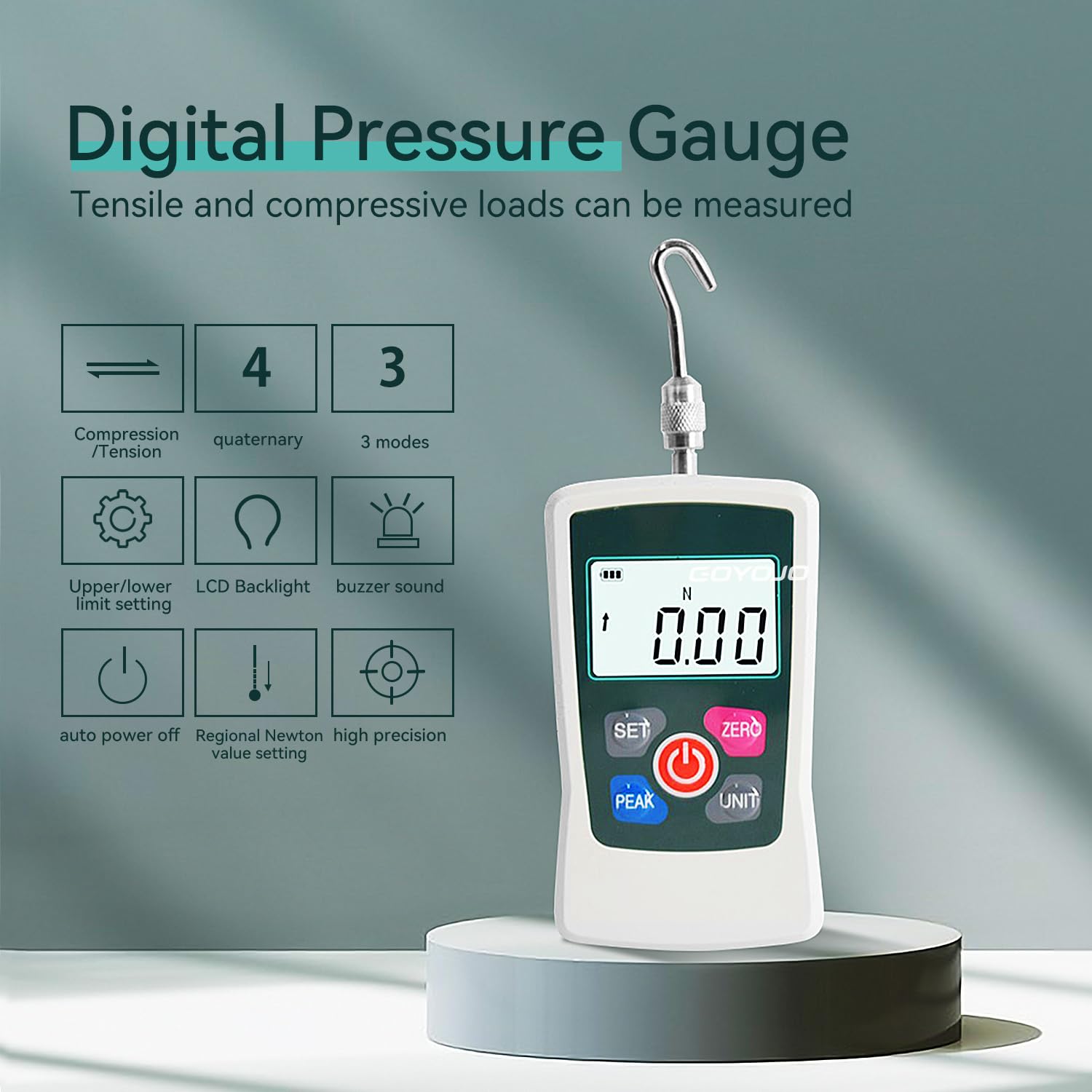

The GOYOJO G-500 Digital Force Gauge is a professional-grade instrument engineered for precision tension and compression force measurements. Whether you are testing the trigger pull of a mechanism, the insertion force of electronic components, or the tensile strength of textiles, the G-500 provides the reliability needed for high-stakes industrial applications.

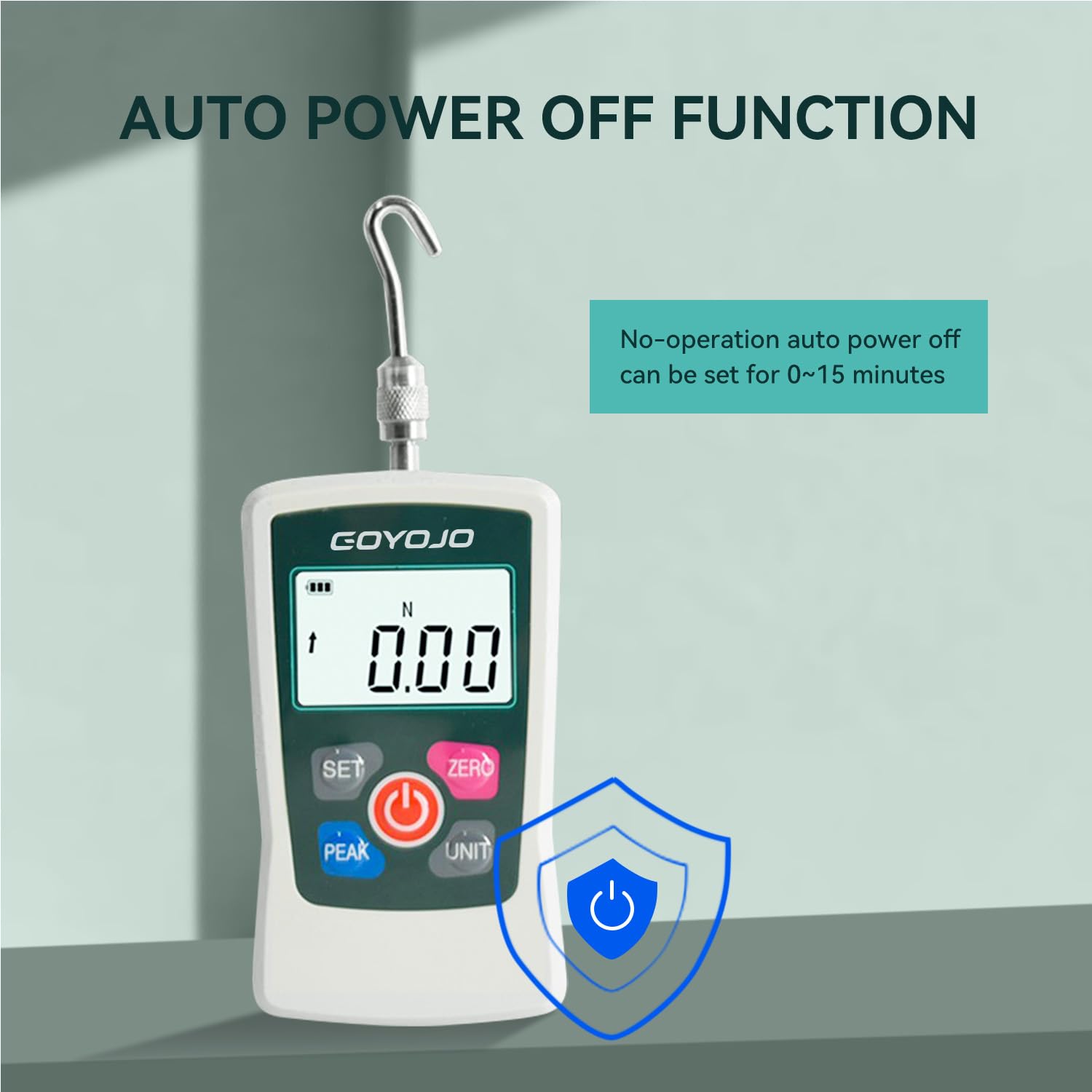

Equipped with an internal high-sensitivity sensor, this push-pull meter eliminates the guesswork in material testing. The intuitive interface allows users to perform destructive lock testing, spring force assessments, and quality audits with ease. Its energy-efficient design, powered by two AAA batteries, includes an automatic shutdown feature to maximize battery life during long workdays.

Key Features & Benefits

• High-Precision Measurement: Deliver accurate results with a maximum load capacity of 500N (50kg / 110lb / 1800oz) and an impressive accuracy of $\pm 1\%$. Perfect for professional quality control and material stress testing.

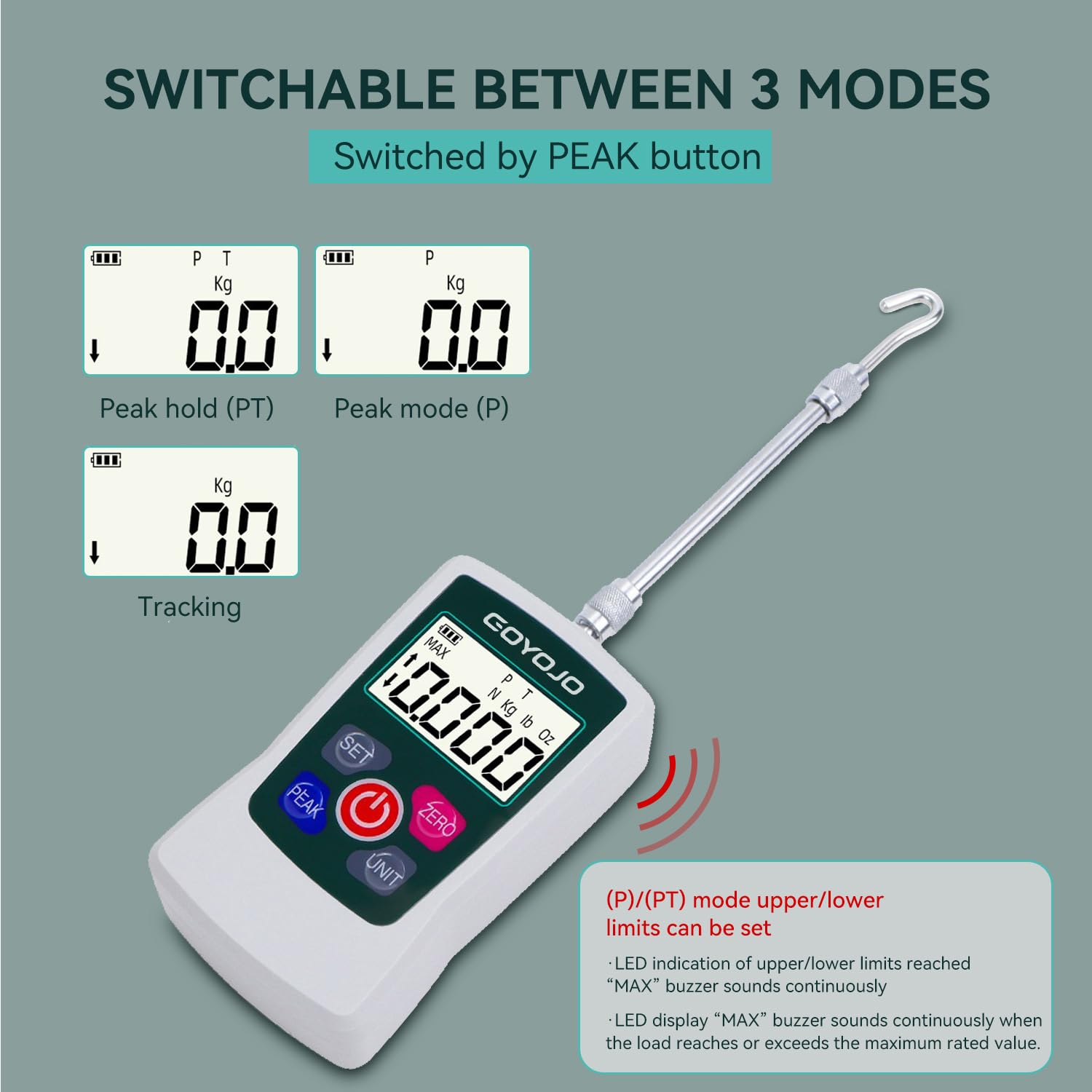

• Versatile 3-Mode Functionality: Switch between Real-Time (continuous tracking), Peak (records maximum force), and First Peak (records the first drop in force) to match your specific testing requirements.

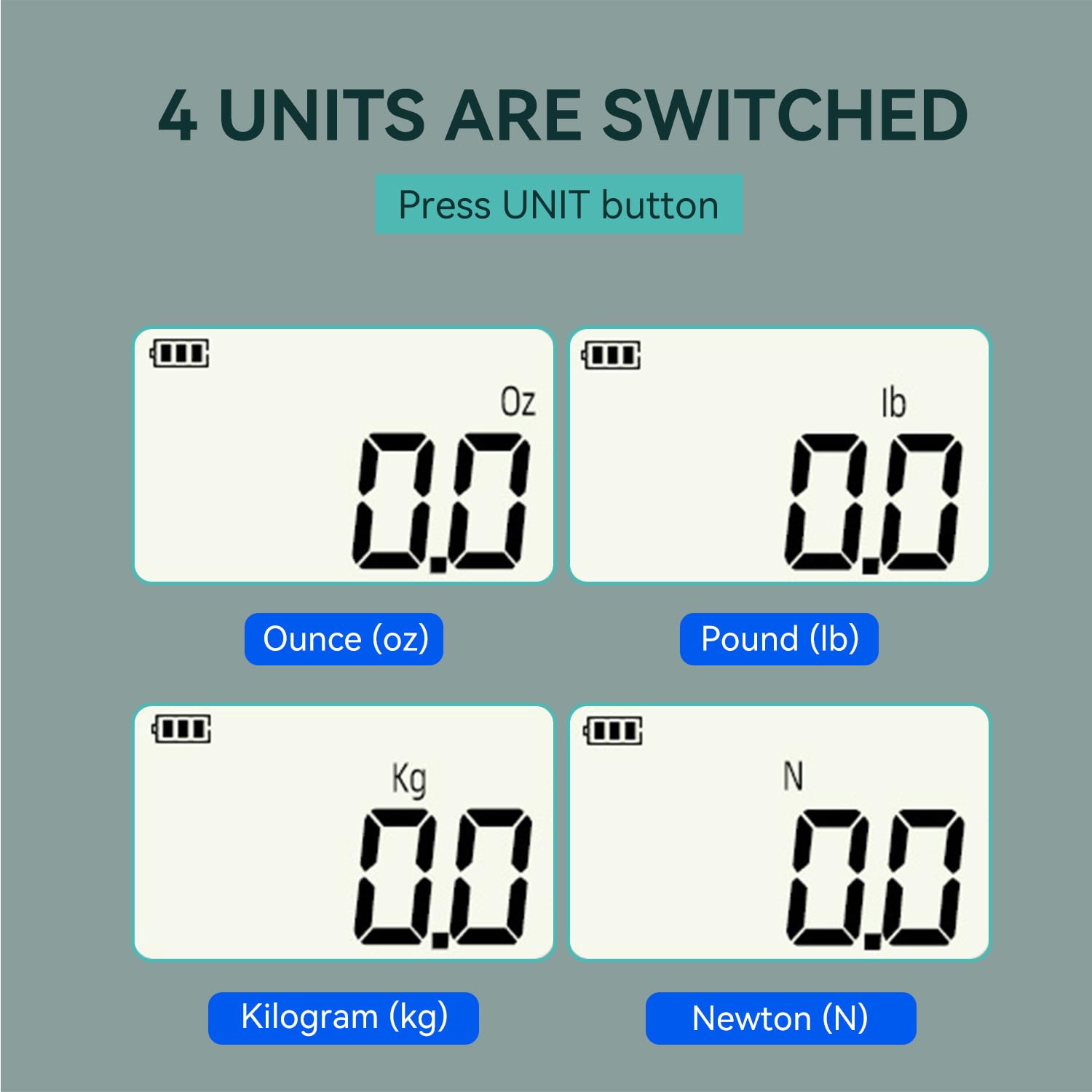

• Multi-Unit Conversion: Effortlessly toggle between Newtons (N), Kilograms (kg), Pounds (lb), and Ounces (oz). No manual calculations are needed, saving time and reducing human error.

• Customizable Gravity Settings: Improve localized accuracy by inputting the specific gravity acceleration of your region. This professional-grade feature ensures consistent data regardless of your geographical location.

• Intelligent Alarms & Analysis: Set upper and lower limits for statistical analysis. The built-in buzzer alarm alerts you instantly if a test exceeds or falls below your specified safety thresholds.

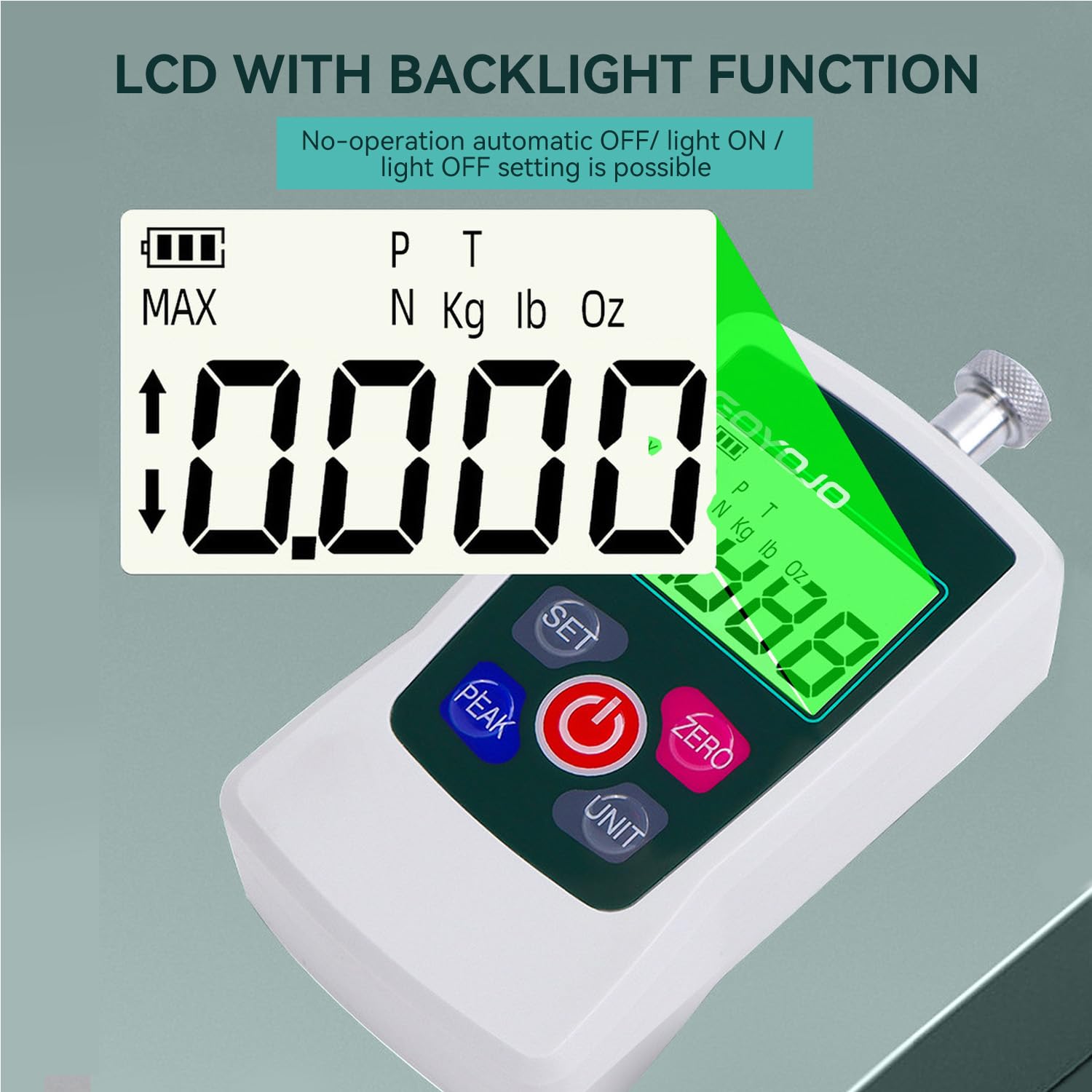

• Durable & Portable Design: Weighing only 400g and featuring a high-contrast backlit display, this compact meter is designed for both laboratory environments and on-the-go field testing.

Primary Applications & Uses

• Automotive Industry: Testing the force of door latches, pedal pressure, and assembly line component strength.

• Electronics & Electrical: Measuring the insertion and withdrawal force of connectors and the durability of smart switches.

• Textile & Light Industry: Tensile strength testing for fabrics, buttons, and zippers.

• Firefighting & Safety: Regular auditing of firefighting equipment triggers and safety release mechanisms.

• Scientific Research: Precise data collection for material science and mechanical engineering laboratories.

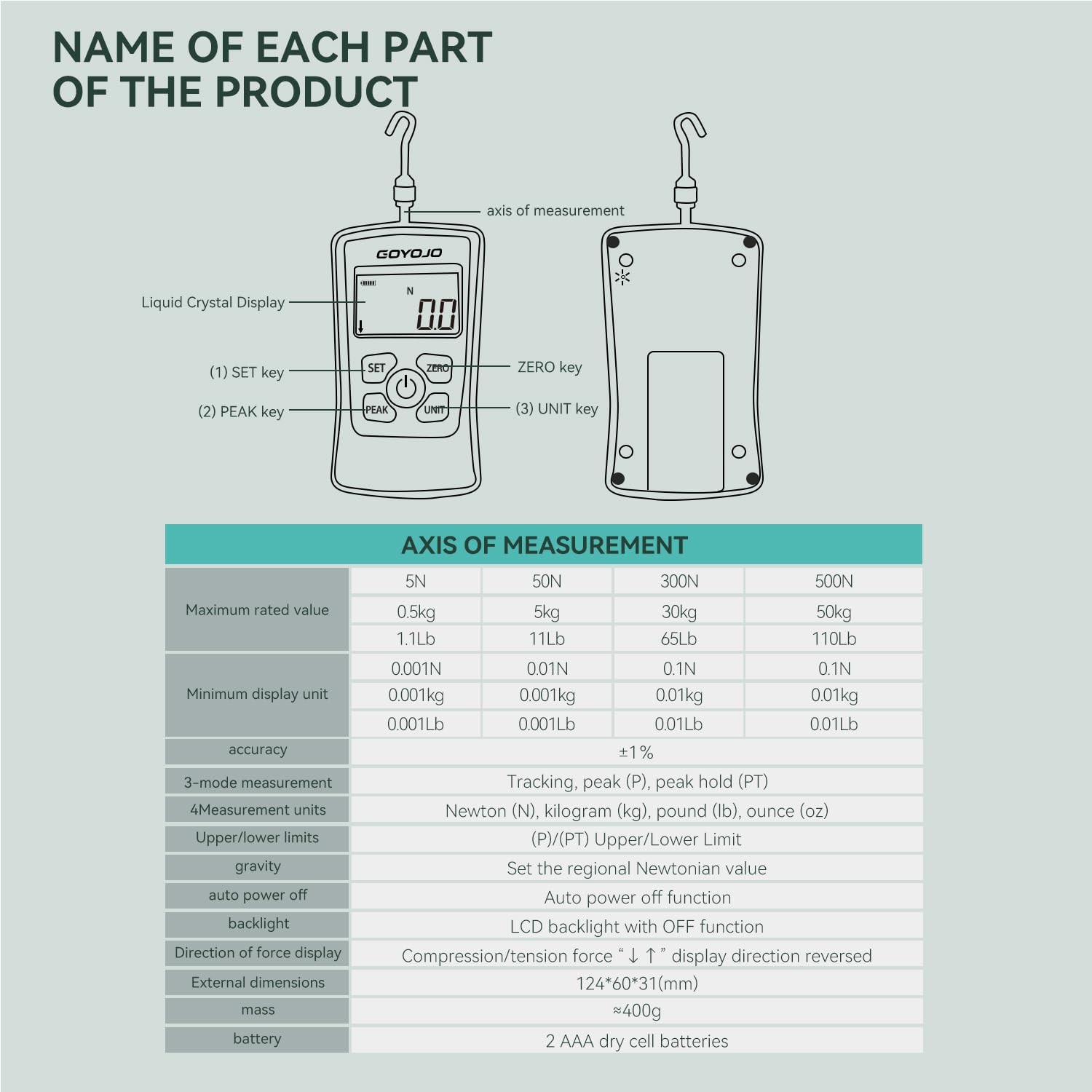

Technical Specifications

Frequently Asked Questions (FAQs)

Q: Can this gauge be used for both pushing and pulling? A: Yes, the GOYOJO G-500 is a bidirectional meter designed for both tension (pull) and compression (push) testing.

Q: How do I calibrate the gauge for my specific location? A: You can manually input the gravity acceleration value of your specific area in the settings menu to ensure the highest possible measurement accuracy.

Q: What is the difference between Peak and First Peak mode? A: Peak Mode captures the absolute maximum force reached during a test. First Peak Mode captures the initial peak force before the first significant drop, which is essential for testing materials that fracture or click (like a trigger or a snap-fit connector).

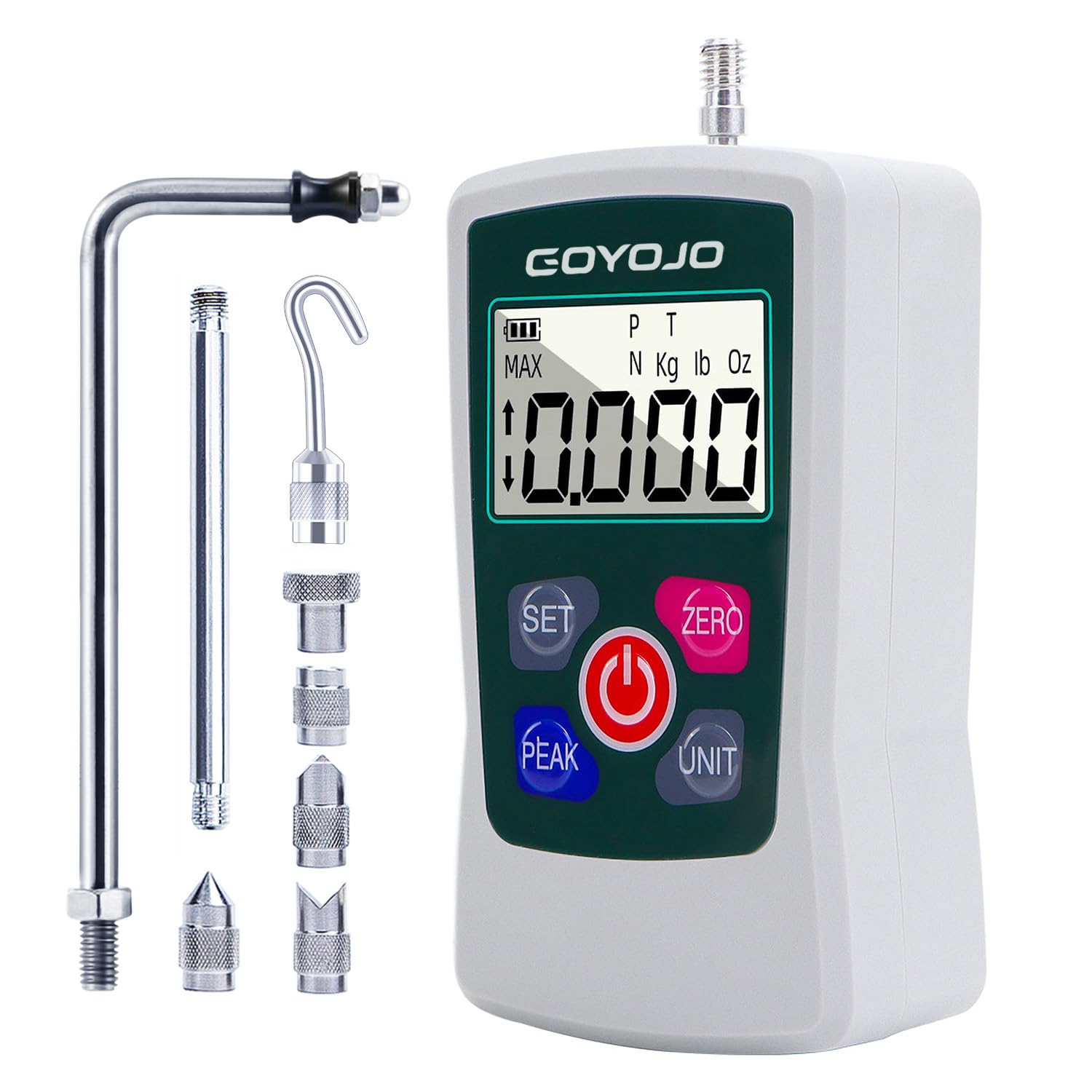

Q: Does it come with attachments? A: The device features a standard mounting thread and is compatible with a wide range of force gauge attachments for hooks, flat heads, and notched tips.

Q: Is this suitable for very small force measurements (under 5N)? A: While highly accurate, if your primary work involves forces consistently below 5N, we recommend a lower-capacity model (such as a 10N or 50N version) for better resolution at the lower end of the scale.
