THINKCAR BD6: The Ultimate OE-Level Full System Diagnostic Tool.

Name: THINKCAR BD6: The Ultimate OE-Level Full System Diagnostic Tool.
Brand: HIVAGI®
SKU: Thinkcar BD6
Price: 5999.0 INR
Availability: InStock

Rs. 5,999.00

~~Rs. 9,000.00~~ Rs. 5,999.00

Sale Sold out

Tax included.

Product variants

Quantity

5 Resets lifetime free

Full system diagnostic

AutoVIN & full OBD2 diagnostic functions

Free lifetime updates, no subscription fees

Supports 15+ languages

Why Recommend Buying Our THINKCAR BD6?

✅Free lifetime use and updates, no subscription fees

✅5 Resets lifetime free: Oil Lamp Reset/EPB Reset/ABS Bleeding/IMMO key programming/Throttle adjustment

✅OE-level Full system diagnostic: Read fault Codes For All System ,such as ECM, TCM, ABS, SRS, BCM, IMM, BMS, TPMS, SAS, Fuel System, Light System, Wiper System

✅Support AutoVIN & full OBD2 diagnostic functions

✅Accurate Data Reports: Live Data Stream Graphing + Data Record+Print Vehicle Health Report Print + Feedback online + Vehicle owner community

✅Wide vehicle coverage. cover up to 115 major vehicle manufacturers, more models are updating

✅Supports 15 languages: English, French, Spanish, German, Italian, Portuguese, Japanese, Russian, Polish, Traditional Chinese, Turkish, Greek, Korean, Hungarian, and Dutch

✅Compatible with: 5.0 Android/ 9.0 iOS iPhone or higher version

The difference between BD6 & bt200 & THINKDIAG MINI

OE-level Full system diagnostic

THINKCAR BD6 Enhanced diagnostic scanner can perform OE-level diagnostics on all systems, such as ABS, SRS, Engine, A/C, Transmission, Wiper, Seat, EPB, TPMS, Body System, AWD,Door Lock System, Battery, ESP, Parking Sensor, Cruise Control, Instrument.

5 Resets lifetime free:

Oil Lamp Reset Service: After the maintenance completed, the maintenance lamp will go out and the system will apply a new maintenance cycle at the same.

EPB Reset Service: When the brake pad is used to a certain thickness, the brake pad sensing line will be worn, at this time the brake pad sensing line will send a signal to the on-board computer, which indicates to replace the brake pad. After replace the brake pad, the brake pad reset is required, otherwise the car will continuously alarm.

ABS Bleeding : When the ABS contains air, the ABS bleeding function is required to bleed the brake system, thereby recovering the brake sensitivity of the ABS.

IMMO Key Programming： The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

Throttle Adaptation： The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

More Features in THINKCAR BD6

AutoVIN automatically identifies vehicle information such as make, model, and year of manufacture

Support printed car health report

Remote Diagnosis

Community support

Support 98% Car Modles (Cover 134 Brands, and Counting)

For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later, being compatible with following protocols:-

ISO 14230-4 KWP

-ISO 15765-4 CAN

-ISO 9141-2

-SAE J1850 VPW & PWM

For advanced functions as active test, all system diagnostics, and maintenance service, it covers 98% of car models available in the market including:

European and American area:
Ford Europe, Mercedes-Benz commercial vehicles, MINI, West, Audi, GMSA, Fiat, Opel, GAZ, Peugeot, Volkswagen, Porsche, Citroen, Skoda, Rover, Land Rover, Volvo, VAZ, Renault, Elves, Mercedes-Benz, Jaguar, Dacia, Lancia, BMW, Romeo, Saab, Ford, Chrysler, GM.

Asia-pacific region:
Thailand Isuzu, Acura, Daewoo, Jianghuai cars (GM), Ssangyong, Infiniti, Proton, Honda, Mazda, Perodua, Jiangling Automobile, Mahindra (MAHINDRA), Isuzu, Suzuki, Byd auto, Chery cars, Toyota, Nissan, Kia, The Car, The Great Wall in cars, Daihatsu, Changan automobile, Geely automobile, Xiamen Jinlong, Zhongxing automobile, Hafei automobile, New Kay, Gonow automobile, Changhe automobile, Hyundai, Liuzhou Wuling, Subaru, Xiali, Australia ford, Mitsubishi, TATA, Zhongtai automobile, Horton, MARUTI, Lexus

Parameter

Bluetooth: hardware supports 4.2BLE, Bluetooth dual mode

Working temperature: 0℃~50℃

Storage environment: ﹣20-60℃

Overall size: 60mm*48.5mm*22.5mm

Warranty: 12 months

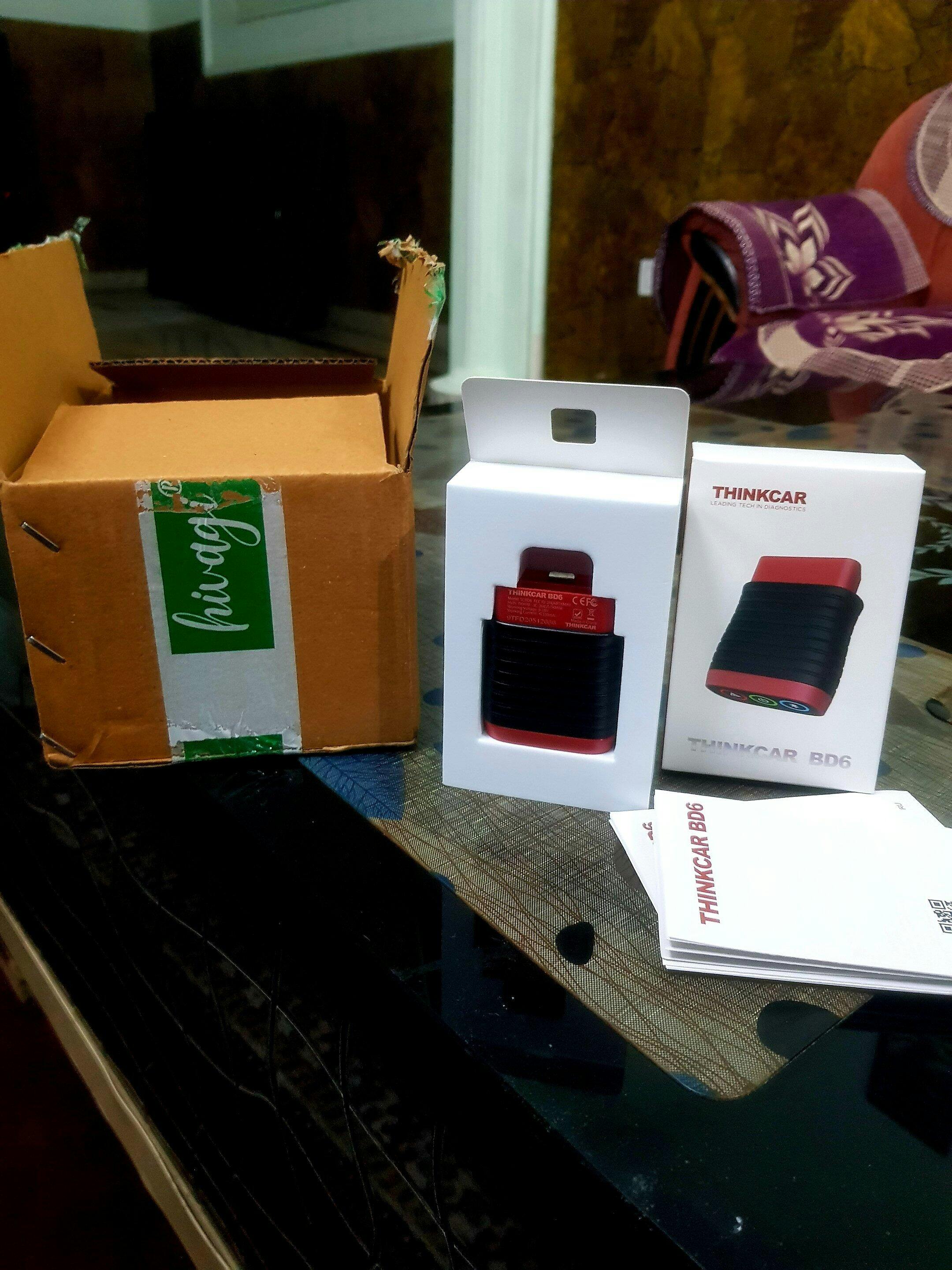

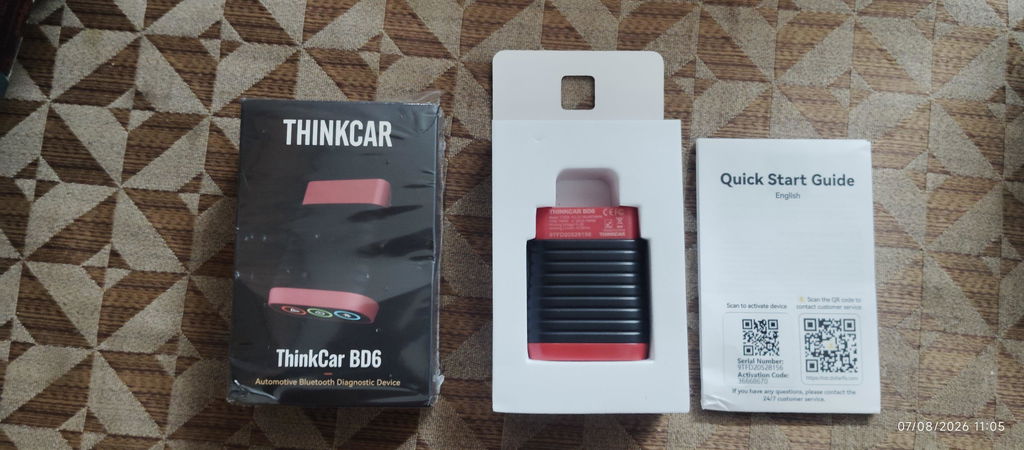

Packing List

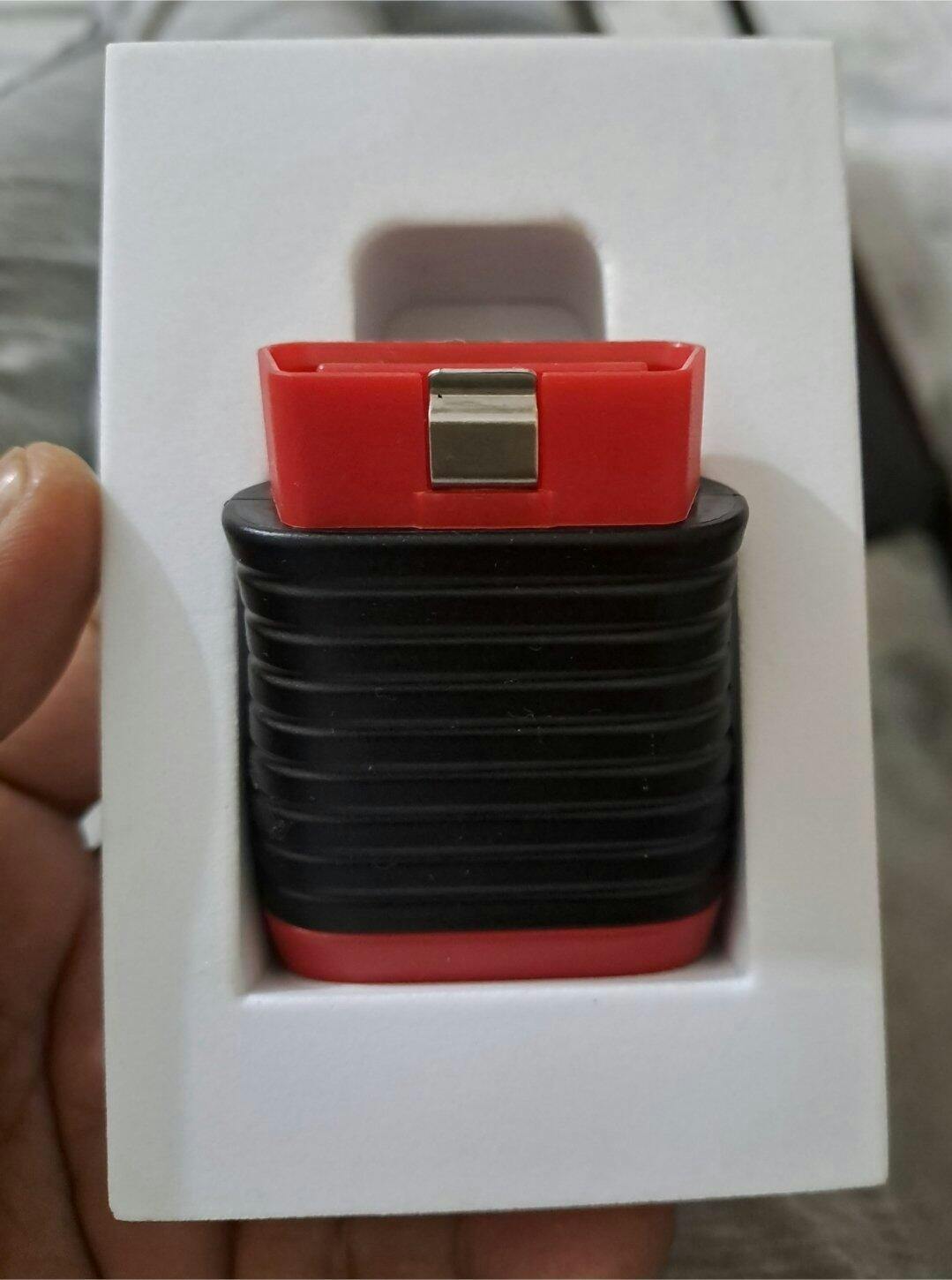

THINKCAR BD6 OBD2 Scanner

User Manual

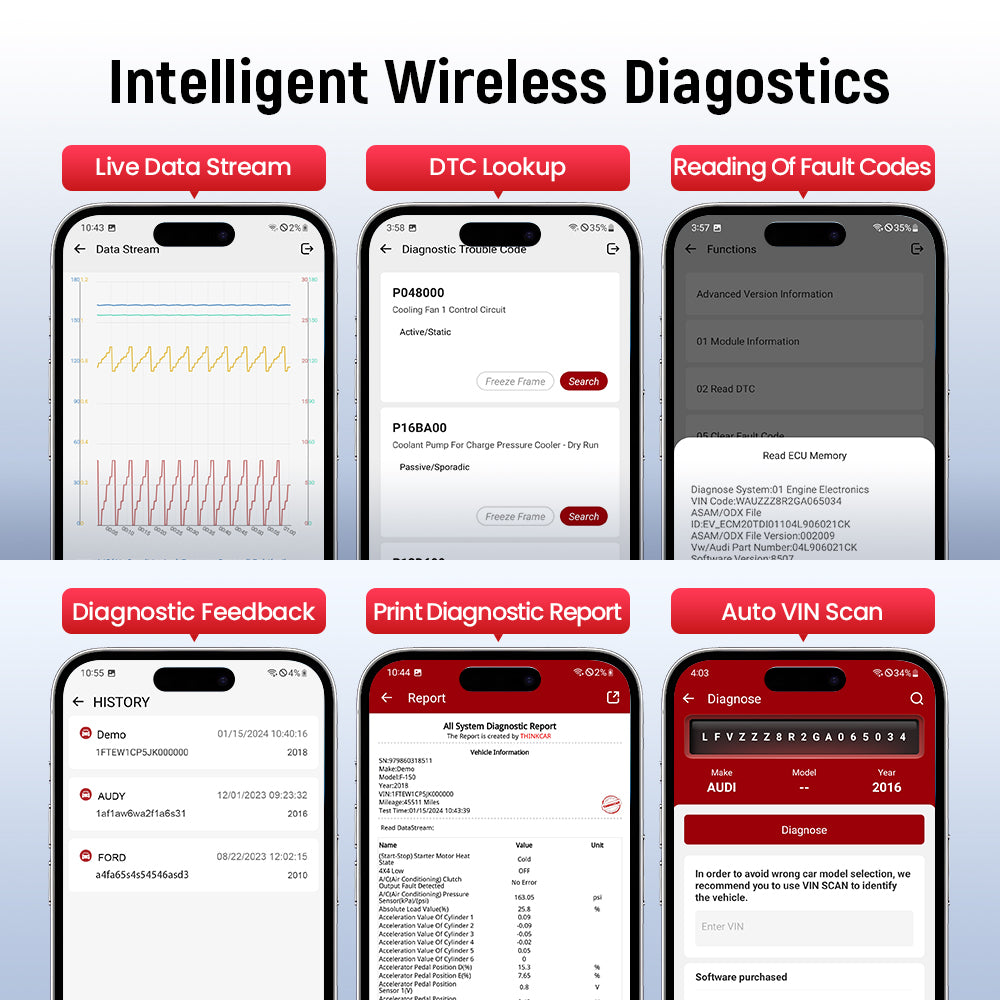

Other Functions

One-Click Auto VIN
DTC Lookup
4 In 1 Live Data Stream
Print Diagnostic Report
Online Feedback

How to Use the THINKCAR BD6?

Step1: Download the "ThinkDiag+" in the APP store or in GooglePlay store.

Step2: Open the THINKDIAD+ APP, click on"Sign Up",verification code will be sent to the email you input, if you did not got, please check the spam.

Step3: Click on "Activate" to open the activation page, you need to input the serial number and an 8-diagit activation code is on the first page of the Quick Start Guide.

Step4: Plug THINKCAR BD6 into the vehicle's OBDII port, there will be a red light which indicates the device is powered on.

Step5: Open the THINKDIAG APP, it will automatically search for activated devices, select your device and connect to it via Bluetooth in the APP. The indicator will turn to flashing blue.

Step6: In the "Diagnostics" interface of the App, you will need to download the corresponding diagnostics software when first apply"All System Diagnostic""Maintenance function" and"OBD Functions".

FAQs

Does THINKCAR BD6 support all car models?
Yes, it supports most vehicles with OBD2 protocols, which includes cars manufactured after 1996.
How often are the free updates provided?
The updates are provided regularly and can be downloaded through the THINKCAR app.
Can I use THINKCAR BD6 on multiple vehicles?
Yes, it can be used on multiple vehicles as long as they are OBD2 compatible.
Is THINKCAR BD6 easy to use for beginners?
Absolutely! The interface is user-friendly, and the app guides you through each process step-by-step.
What happens if I lose my key?
With the IMMO key programming feature, you can disable lost keys and program new ones without visiting the dealer.
