Tongou Smart WiFi Energy Switch, 1P+N, Power Monitor, Recloser & Overload Protection.

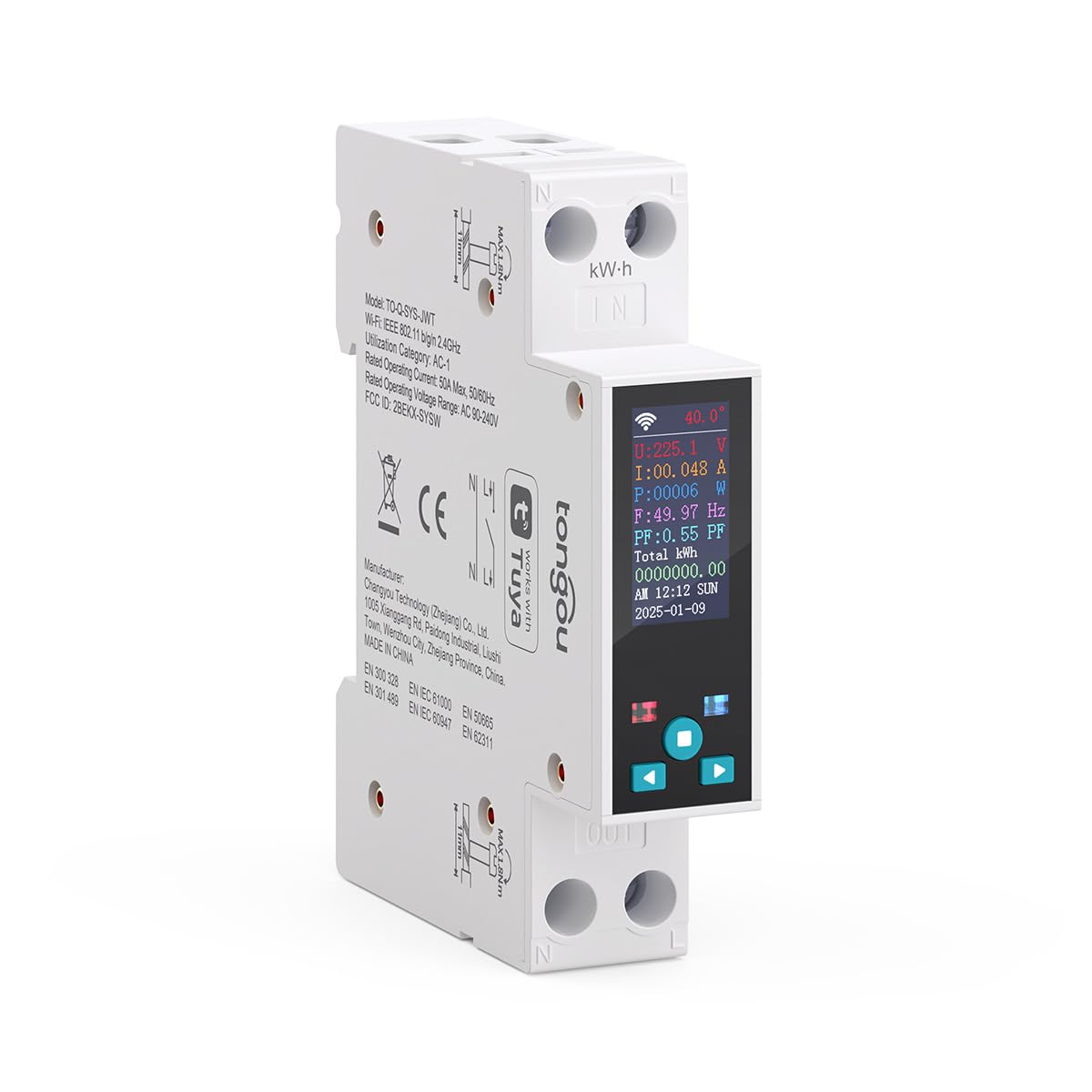

Tongou Smart WiFi Energy Management Switch (1P+N, 1-50A)

Take complete control of your home's electricity consumption with the Tongou Smart WiFi Switch, a professional-grade DIN rail mounted device designed for modern energy management. Perfect for controlling high-load resistive circuits like water heaters, ovens, and lighting (AC-1 scenario).

• Smart Energy Management: Real-time monitoring of Voltage, Current, Power, and historical KWh data; export reports via email.

• Remote & Voice Control: Manage connected devices from anywhere via Tuya/Smart Life APP, compatible with Amazon Alexa & Google Assistant.

• Advanced Protection & Recloser: Features Over-Current, Over-Voltage, Under-Voltage, and Over-Power protection with automatic reclosing functionality.

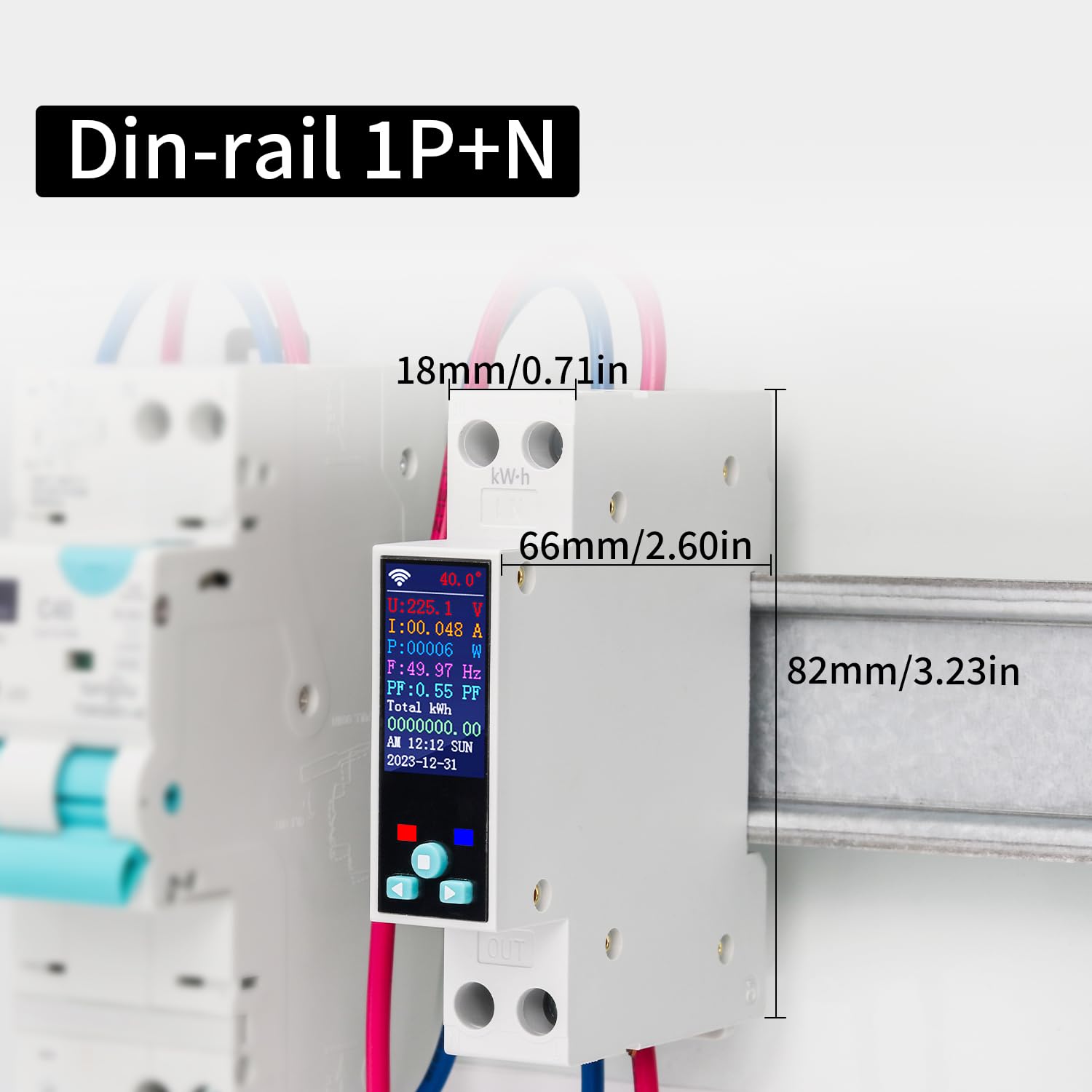

• Wide Current Range & DIN Rail: Supports AC 90-240V and 1-50A; easy DIN Rail mounting; $1P+N$ design (Neutral cannot be cut).

• Local Control & Security: Set parameters via on-device buttons (no WiFi needed); LCD display with adjustable brightness; optional password protection.

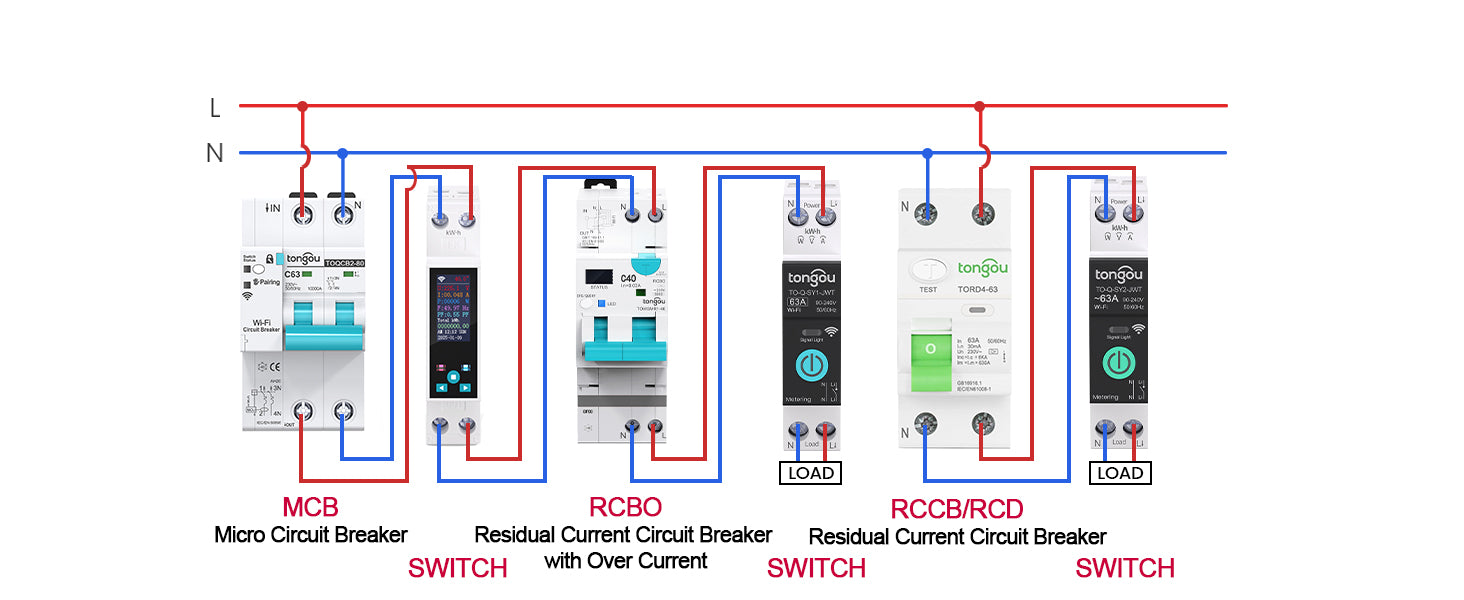

• Safety Note: Use with an external circuit breaker as this switch does not provide short-circuit protection.

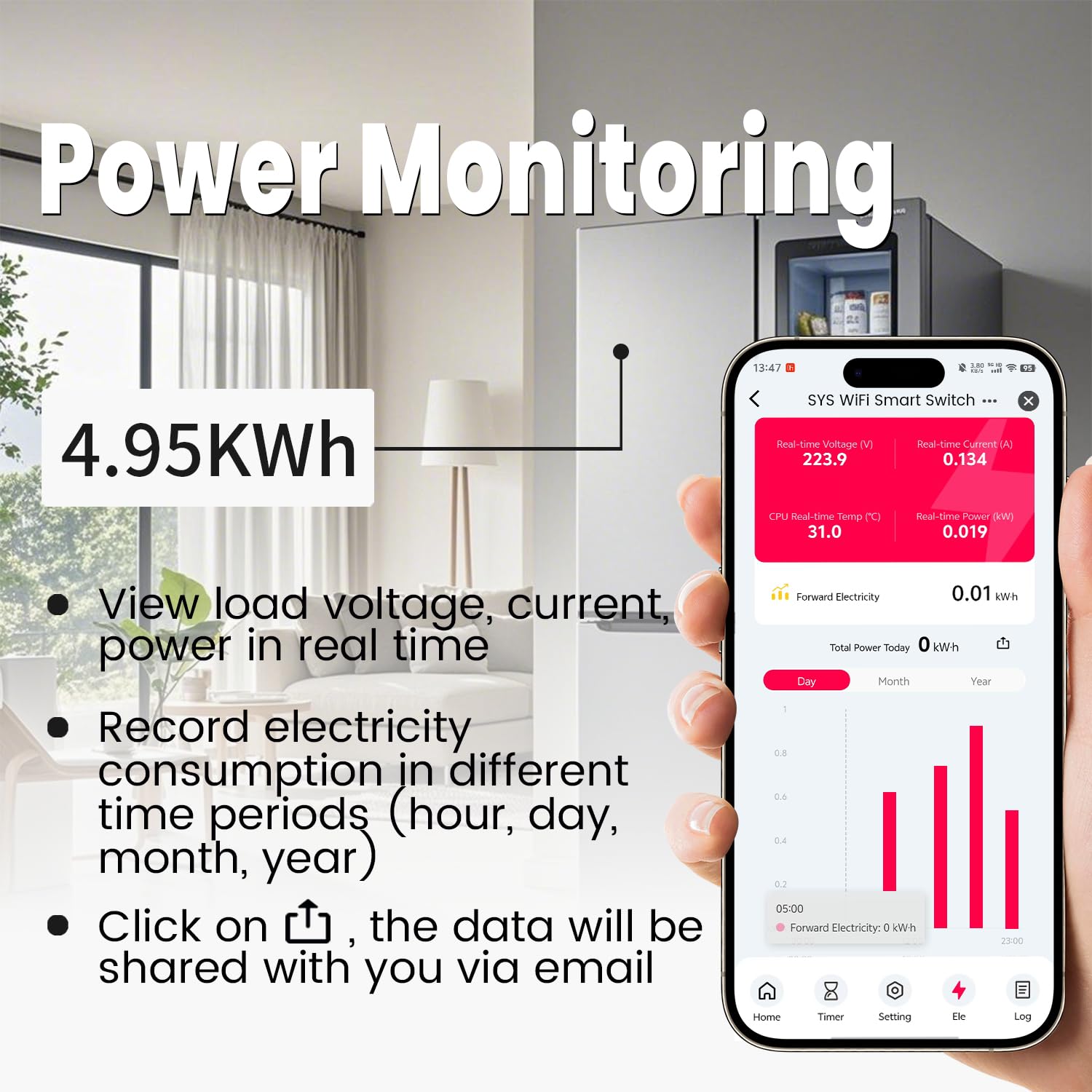

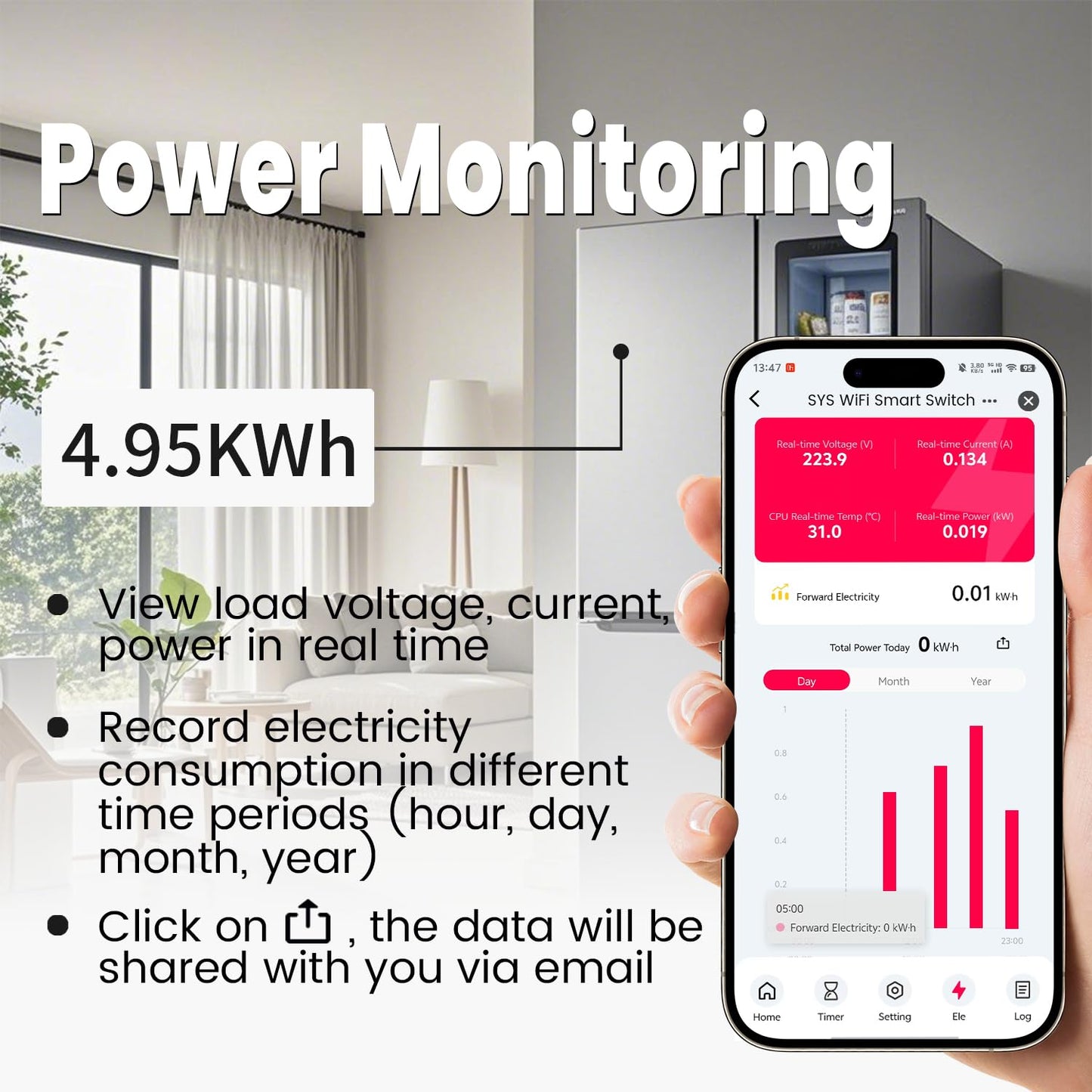

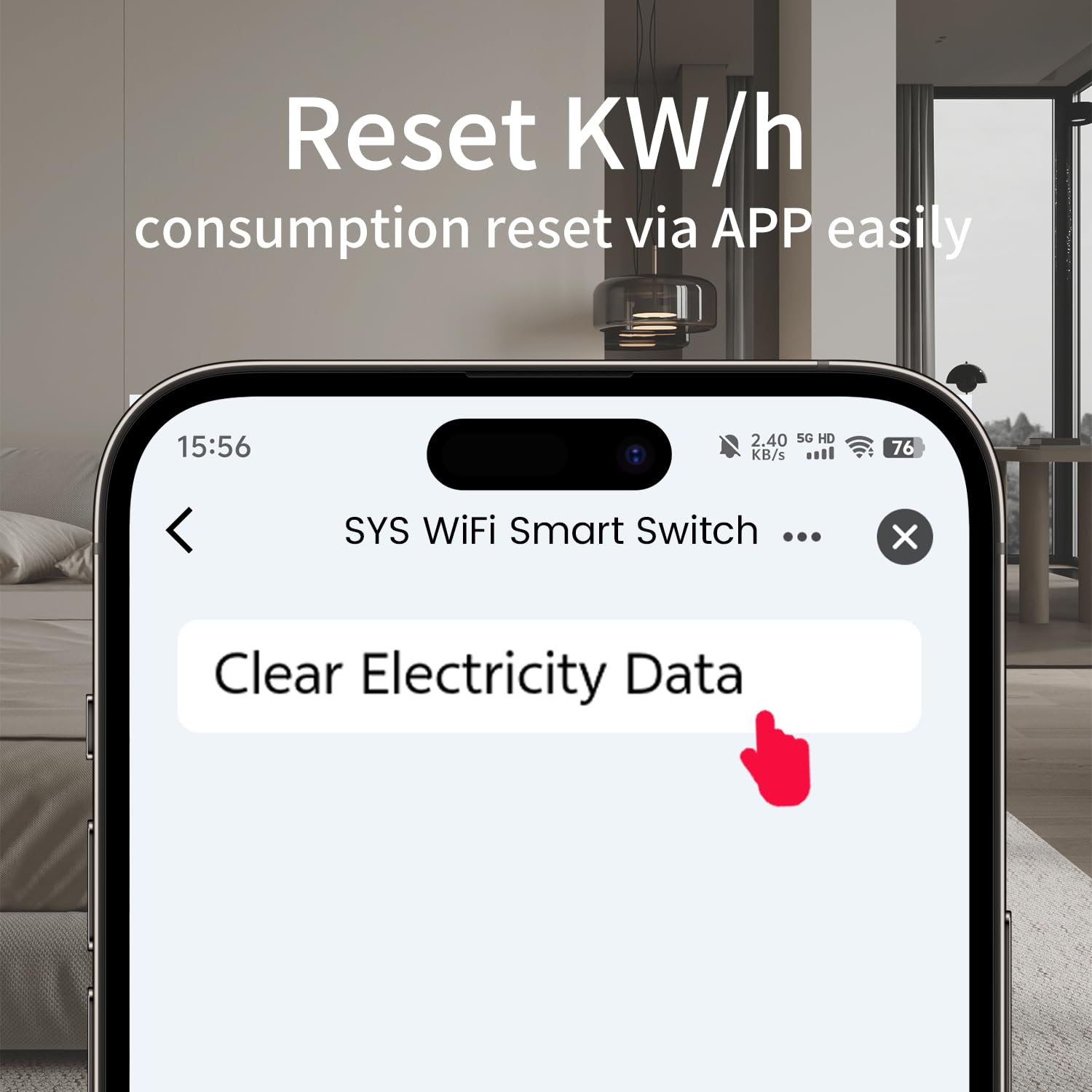

Unrivaled Power Monitoring & Data Export: Gain deep insights into your electricity usage. Our smart switch provides real-time power monitoring of Voltage, Current, and Power, alongside detailed historical data tracking (hour, day, month, year). Use the Smart Life/Tuya APP to export power consumption data directly to your email for easy analysis and billing management. Functions include tracking remaining prepaid electricity and clearing data for comprehensive management.

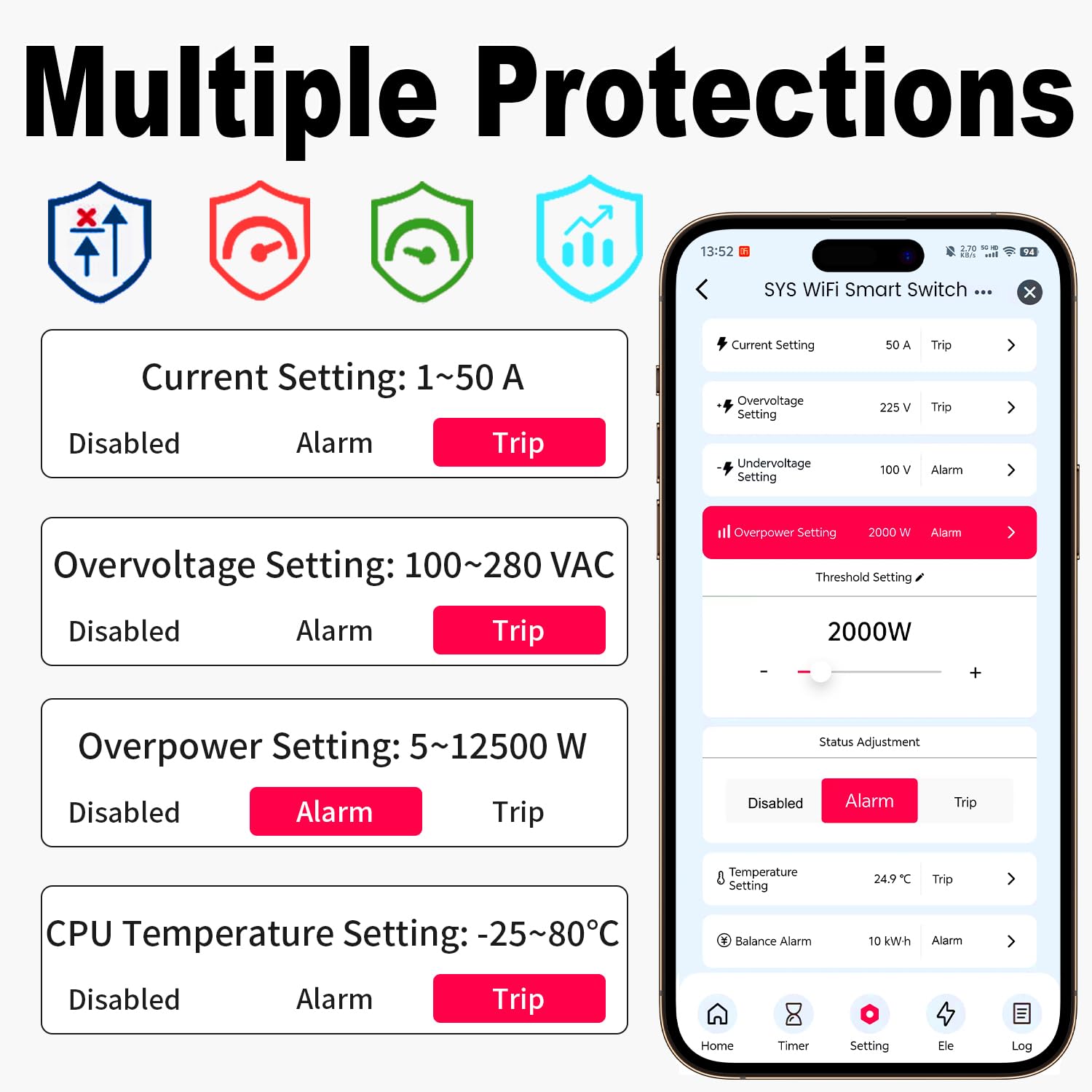

Intelligent Safety & Auto Reclosing: Protect your expensive appliances with integrated safeguards. The Tongou switch features robust Over-Current, Over-Voltage, Under-Voltage, Over-Power, and CPU Temperature Protection. The multiple Recloser Function ensures minimal downtime:

• Over-Voltage/Under-Voltage: Automatically recloses upon fault clearing.

• Over-Current/Over-Power: Attempts 3 reclosures before locking out if the fault persists.

Seamless Smart Home Integration: Control and automate your power with unmatched flexibility:

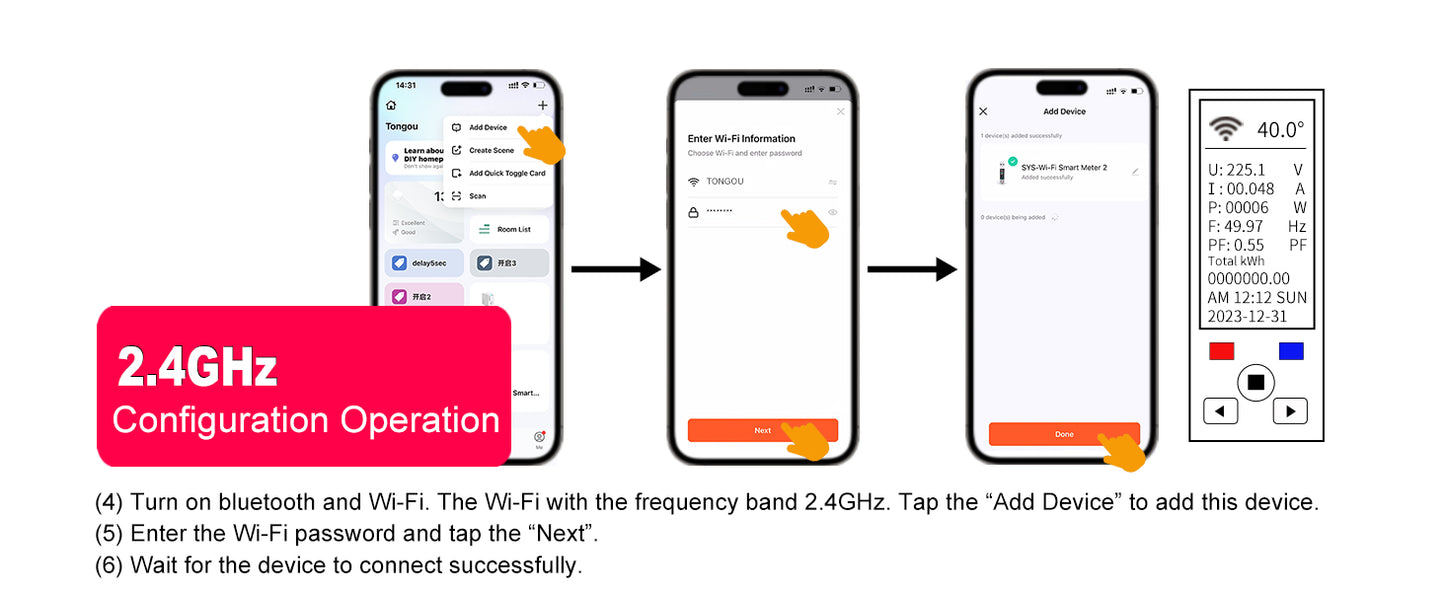

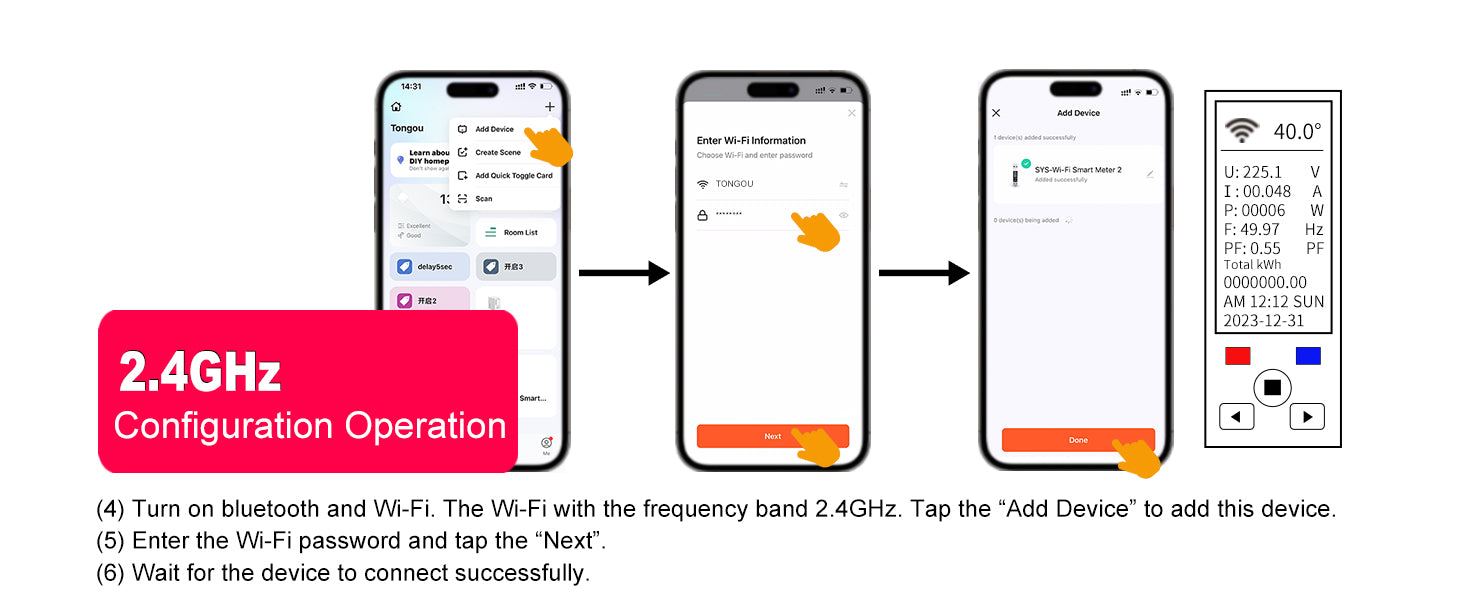

• Remote WiFi Control: Turn appliances on/off from anywhere using the Smart Life or Tuya APP, eliminating distance and time restrictions.

• Voice Activated Switching: Compatible with Amazon Alexa and Google Assistant for hands-free voice commands.

• Advanced Timing: Set precise schedules, sunrise/sunset, or circulating timers to optimize usage and save on electricity bills.

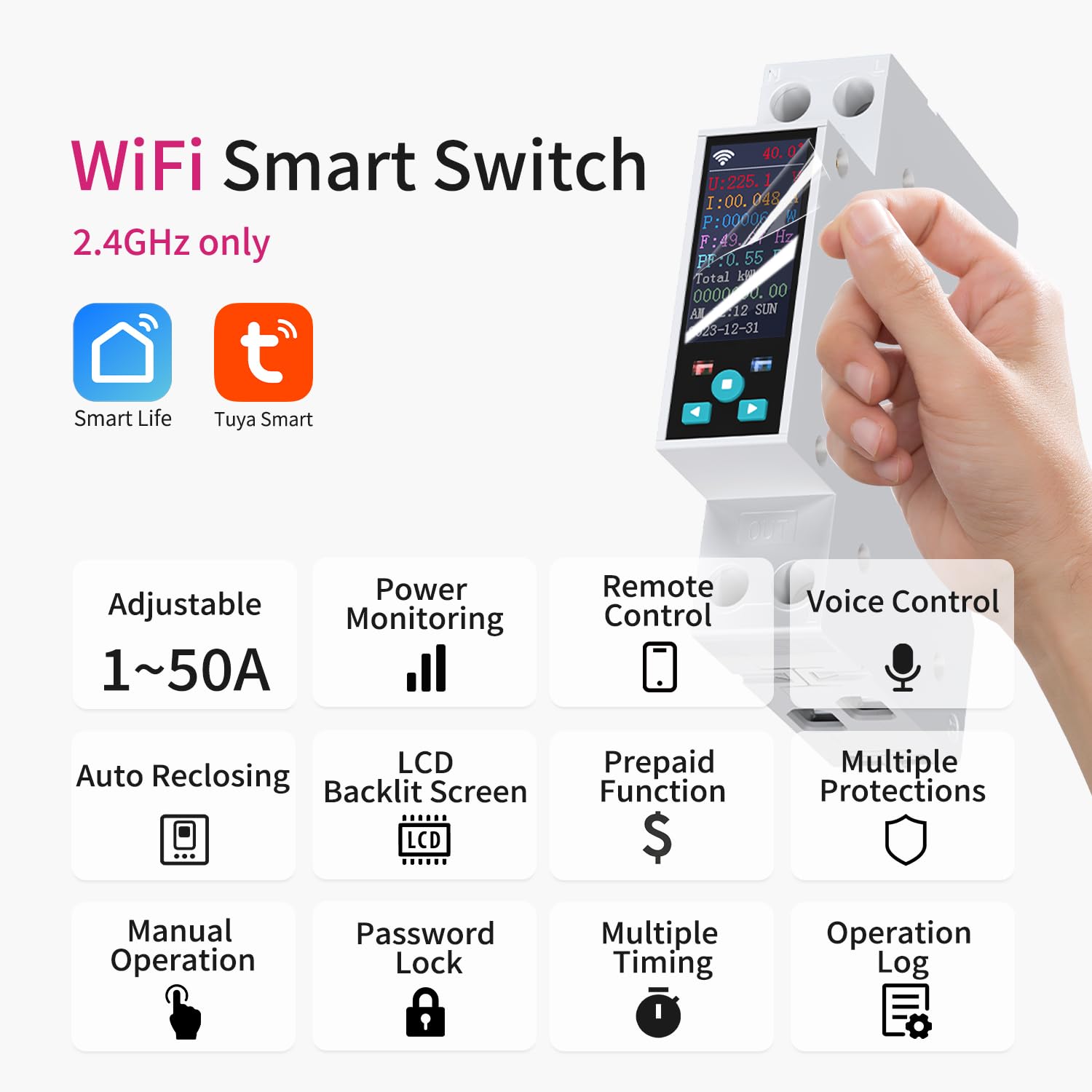

Designed for Reliability and Ease of Use:

• High Capacity Latching Relay: Capable of carrying high current (1-50A) for demanding loads.

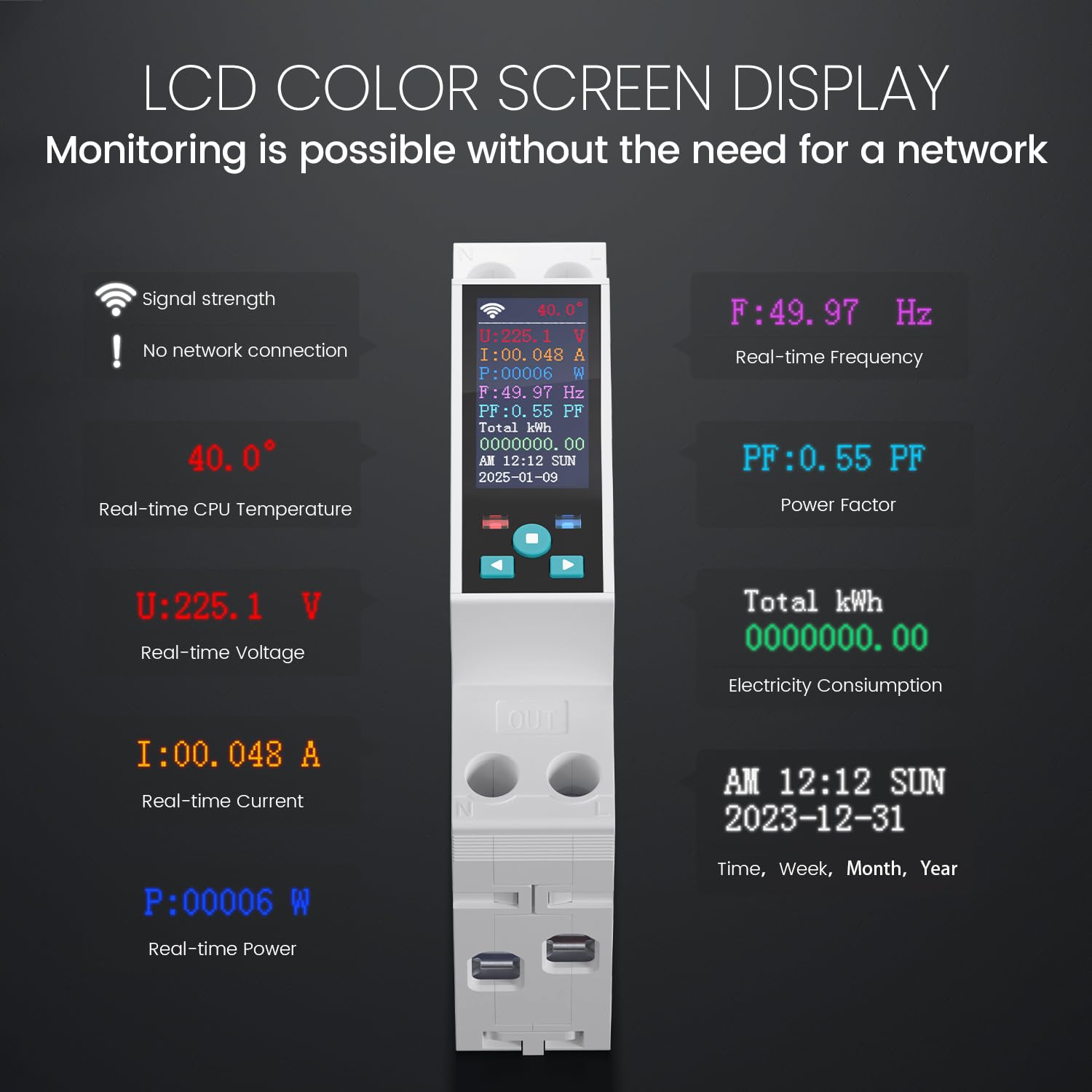

• Clear LCD Display: $1P+N$ design with a color-backlit LCD for clear, real-time data viewing, adjustable 1-5 levels of brightness.

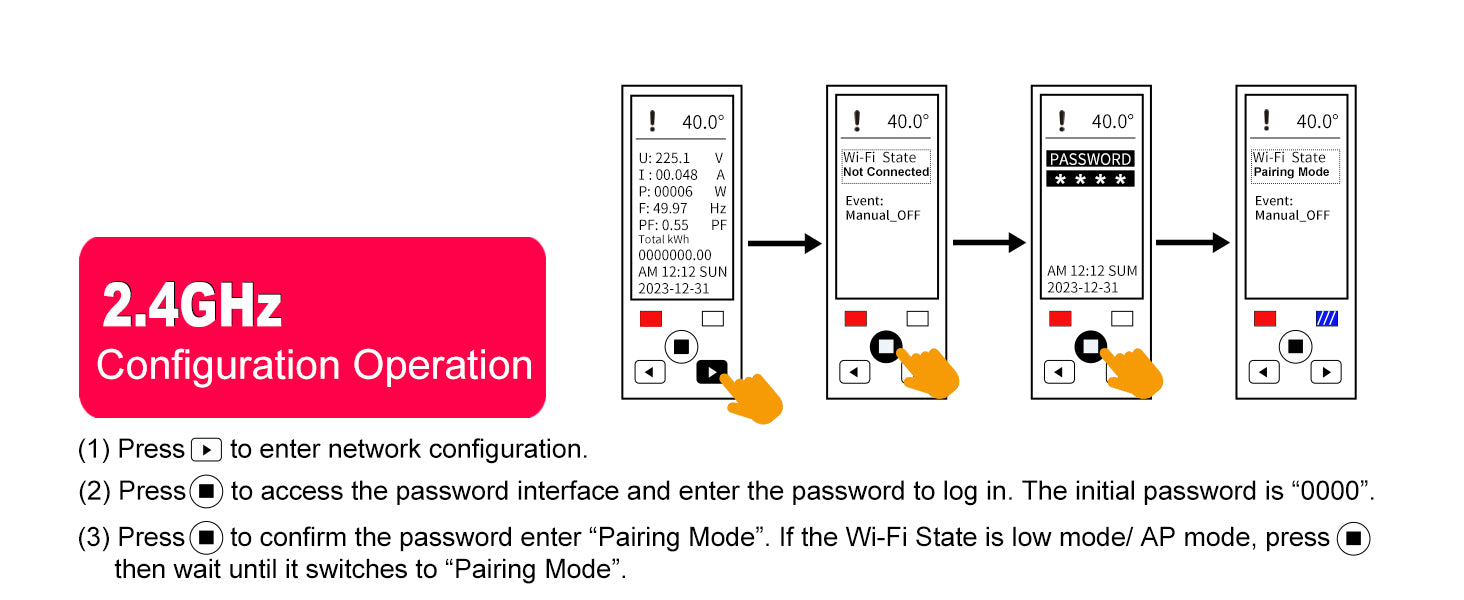

• Local Control: Even without a WiFi connection, all parameters and functions can be set and adjusted using the three local buttons, secured by an optional password.

Technical Specifications for TO-Q-SYS-JWT WiFi Smart Switch
